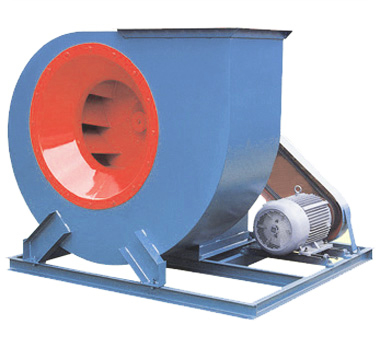

| 4-68 centrifugal fans |
|
|
| |
| They are used for indoor ventilation in common factories and large buildings. They can both input and output gas. The gas to be delivered shall be the air and other gas that do not exceed 80℃ and are incapable of spontaneous combustion and noncorrosive to steel and iron materials, and will do no harm to human body. The gas shall not contain stickums. The content of dust and hard particles in the gas shall not be more than 150mg/m3. |
| |
|
Model(No.)
|
Power(Kw)
|
Rotation Speed (r/min)
|
Volume Flow (m3/h)
|
Total Pressure (Pa)
|
|
2.8A
|
1.1
|
2900
|
1131-2262
|
950-657
|
|
0.55
|
1450
|
565-1131
|
245-166
|
|
3.15A
|
1.5
|
2900
|
1825-3435
|
1245-853
|
|
0.55
|
1450
|
912-1718
|
313-215
|
|
3.55A
|
3
|
2900
|
2708-5013
|
1608-1108
|
|
0.55
|
1450
|
1354-2507
|
402-274
|
|
4A
|
4
|
2900
|
3984-7281
|
2069-1431
|
|
0.75
|
1450
|
1992-3641
|
519-353
|
|
4.5A
|
7.5
|
2900
|
5790-10485
|
2657-1833
|
|
1.1
|
1450
|
2895-5242
|
666-460
|
|
5A
|
15
|
2900
|
8050-14490
|
3314-2304
|
|
2.2
|
1450
|
4025-7245
|
823-578
|
|
6.3D
|
5.5
|
1450
|
8320-14761
|
1323-921
|
|
2.2
|
960
|
5508-9773
|
578-402
|
|
8D
|
18.5
|
1450
|
17585-30774
|
2157-1500
|
|
5.5
|
960
|
11643-20375
|
942-657
|
|
3
|
730
|
8853-15403
|
549-383
|
|
10D
|
55
|
1450
|
35420-61179
|
3442-2422
|
|
18.5
|
960
|
23450-40505
|
1510-1059
|
|
7.5
|
730
|
17832-30801
|
873-618
|
|
12.5D
|
55
|
960
|
45800-79111
|
2354-1657
|
|
22
|
730
|
34828-60157
|
1363-961
|
|
